Product Description
Luiton MD380 digital two way radio
- DMR Tier I & II standard;
- Frequency : VHF 136-174MHZ/ 400-470MHZ
- Compatible with Mototrbo
- Dual mode(Digital & Analog)
- CTCSS/CDCSS(Analog mode only)
- 5KHz/25KHz band selection
- 2000mAh high capacity battery, 1000 Channels
- High power: 5W output
- English Voice Prompts
- Power Save/Low Power Alarm
- VOX/Sensitivity
- Security Voice Encryption
- Channel Scanning
- Emergency Alarm
- SMS
- Battery Save
- zone selection
- Selection of channels, user ID or Group ID
- Receive All Call , Receive and Reply the single call
- PC programmable
| General | |
| Frequency Range | VHF 136-174MHZ / UHF 400-470MHZ |
| Rated Voltage | DC 7.2V Li-ion battery |
| Memory Channel | 1000 |
| Channel Spacing | 12.5KHz/25KHz |
| Frequency Sensitivity | ± 2.5PPM |
| Antenna Impedance | 50 Ω |
| Dimension | 105*53*32mm except antenna |
| Transmitter | |
| Output Power | 5W |
| Current | ≤ 1.5A |
| Modulation Distortion | ≤ 5% 300-3000hz |
| Maximum Frequency Deviation | < 5Khz |
| CTCSS Frequency Deviation | 0.75KHz ± 50Hz |
| Remanent Radiation | ≤ 7uW |
| Modulation Mode | 16Kø F3E |
| Remanent Modulation | ≤ -35DB |
| Receiver | |
| RF Sensitivity | ≤ 0.25uv |
| Silent Sensitivity | ≤ 0.2uv |
| Audio Frequency Power | ≥ 500mw |
| Audio Distortion | < 5% |
| Modulation Receiver Band width | ± 7khz |
| Spurious Rejection | ≥ 55DB |
| Selectivity | ≥ 65DB |
| Intermodulation | ≥ 60DB |

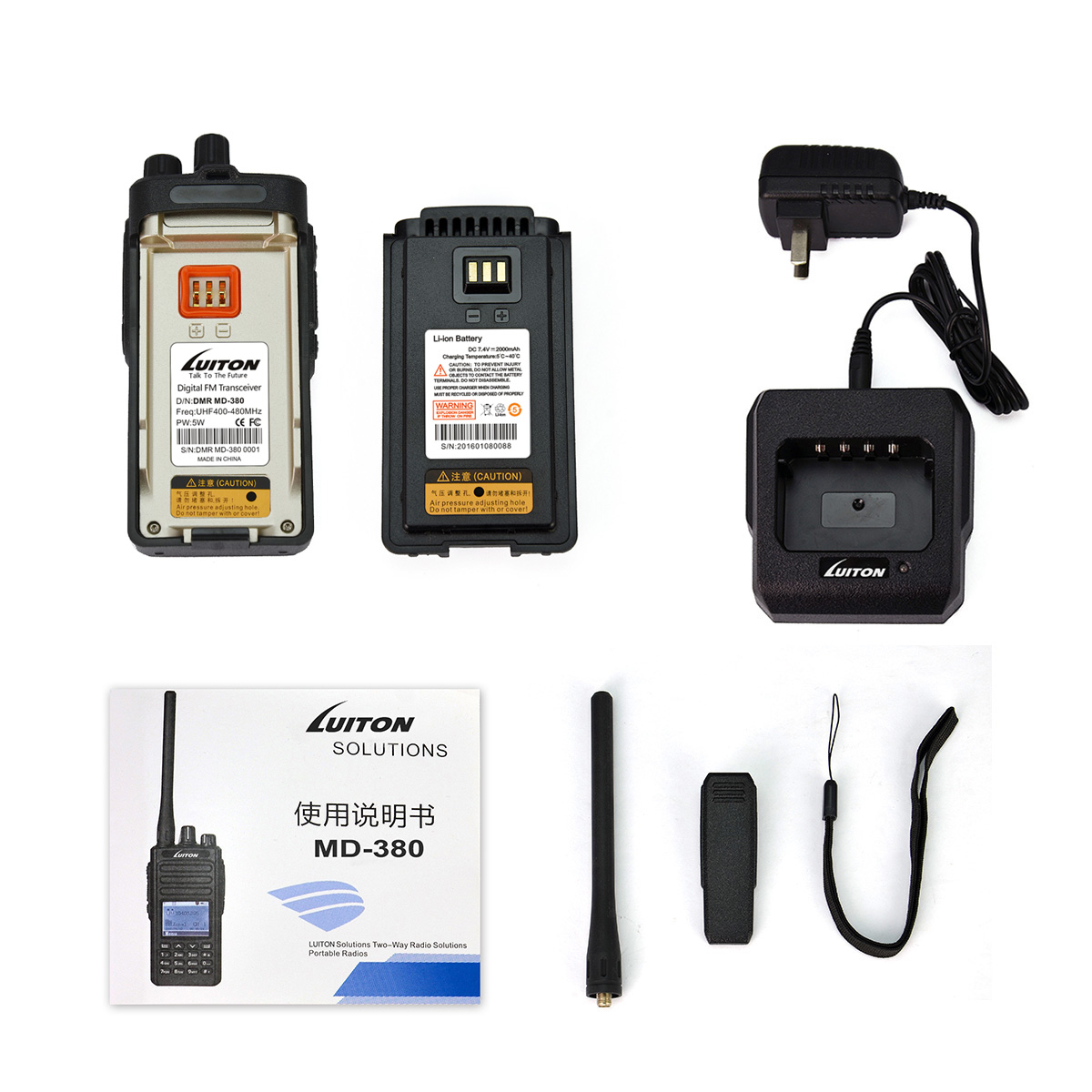

Each set packaging includes:
1 x Luiton MD380 digital two way radio
1 x Charger
1 x Battery
1 x Antenna
1 x Belt clip
1 x Use’s manual
