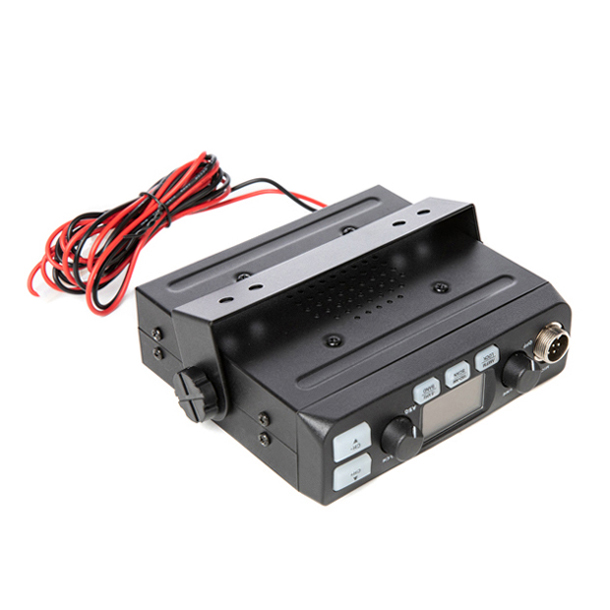

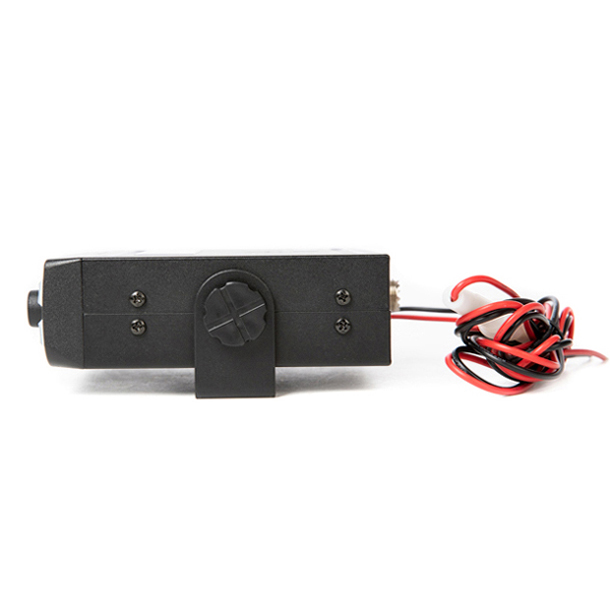

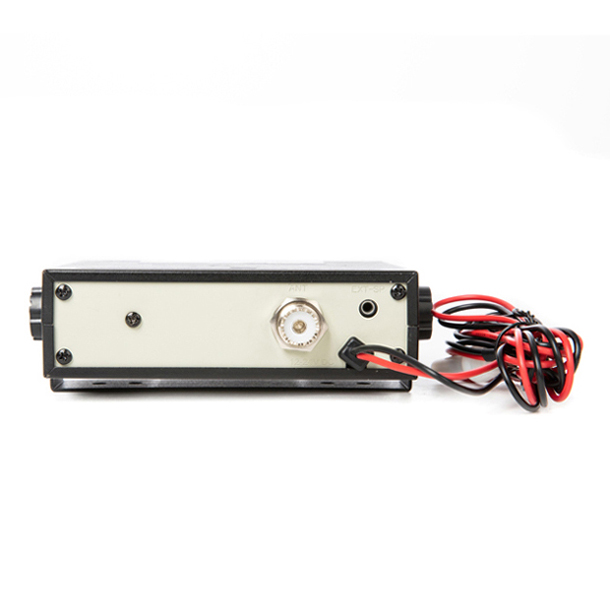

LUITON LT-338 CB RADIO

    LUITON LT-338 CB RADIO

    Categories:

    Function:

    • • Frequency: 25.615~30.105MHz/24.265~29.655MHz
    • • 4W or 8W CB radio
    • • Channels: E D EU EC PL UK US NZ
    • • Expand Mode Freq: RU PO PC
    • • Emergency call channel available (CH9).
    • • Power supply: 12-24V Input
    • • ASQ function.

    Product Description

    TECHNICAL CHARACTERISTICS

    GENERAL
    Modulation modesAM/FM
    Frequency range26.965-27.405MHz
    Antenna impedance50 Ohms
    Power supply12-24V Input
    Dimensions150*140*41mm
    Weight761G
    TRANSMISSION
    Frequency deviation+/-300HZ
    Power output1W/4W/8W
    Transmission interferenceInferior to 4nW(-54dBm)
    Audio response300HZ to 3KHZ in AM/FM
    Emitted power in the adj.channelInferior to 20uW
    Microphone sensitivity3mV
    Maximum currentMax 3A
    Modulated signal distortionInferior to 5%
    RECEPTION
    Max sensitivity at 20dB sinad0.8uV-113dBm FM1.5uV-103dBm AM
    Frequency response300HZ to 3KHZ in AM/FM
    Adjacent channel selectivity60dB
    Maximum audio power3W
    Squelch sensitivityMinimum 0.2uv-120dBmMaximum 1mV-47dBm
    Maximum current0.3Anomoinal/1.2A maximum

    LUITON LT-338 CB RADIO
