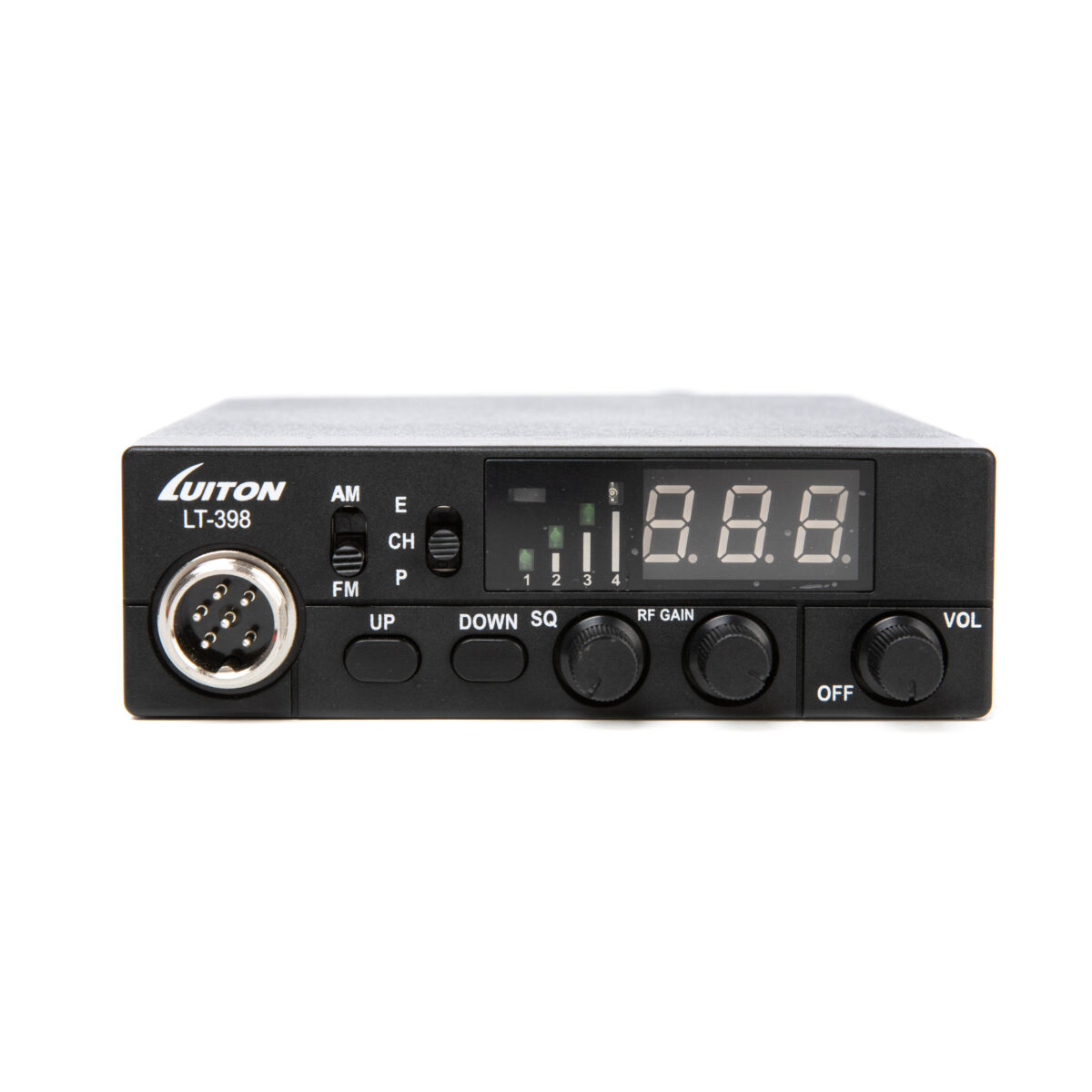

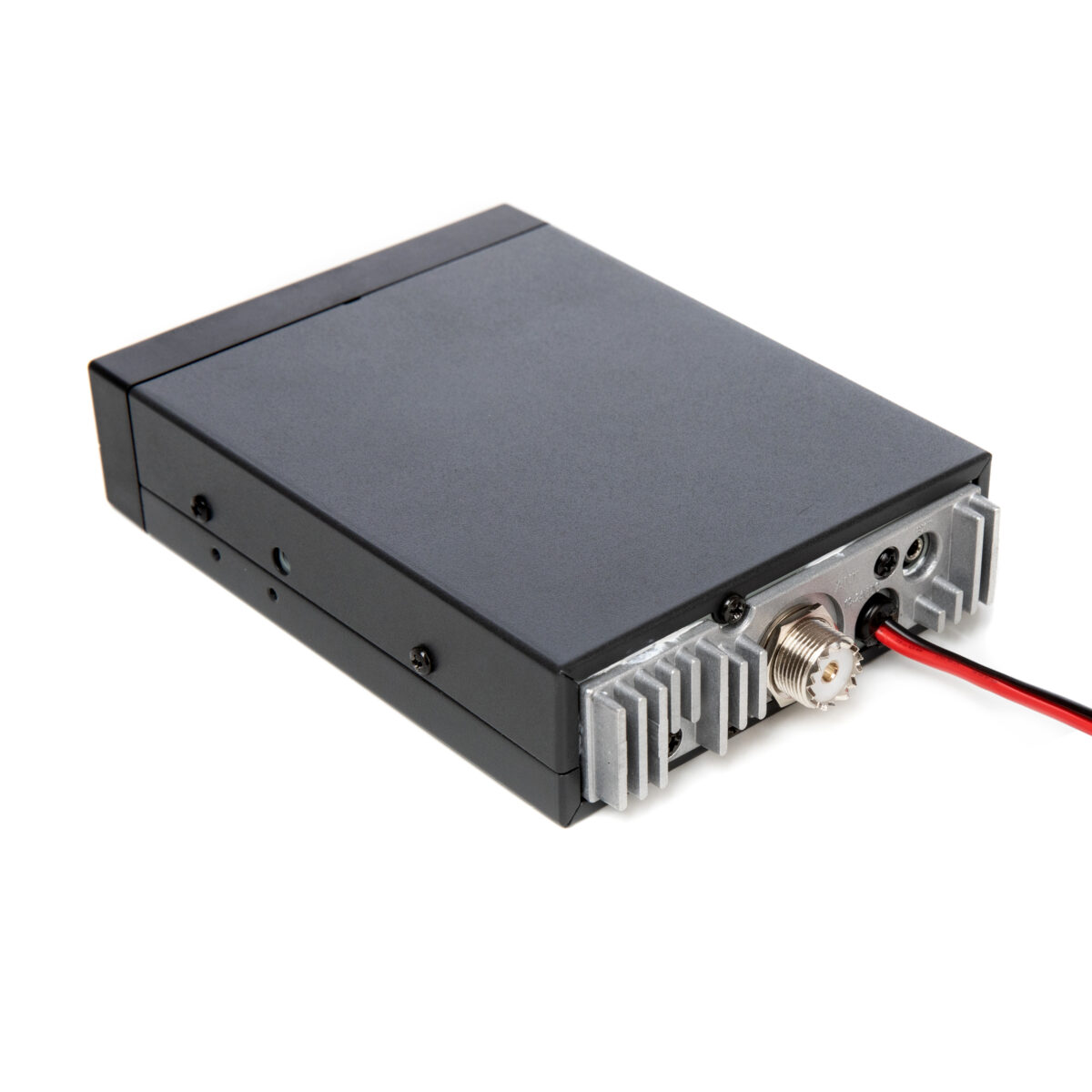

Product Description
TECHNICAL CHARACTERISTICS
| GENERAL | |
| Channels | 40 AM/FM |
| Frequency range | 26.960-27.400MHz |
| Frequency control | P.L.L. |
| Frequency Tolerance | +0.005% |
| Operating temperature | -20°/+55°C |
| DC input voltage | 12~24Vdc +15% |
| Size | 115 (L) x 38 (A) x 150 (P) mm |
| Weight | 0.8 kg |
| RECEIVER | |
| System | CPU controlled Double conversion super |
| IF | 1° 10.7 MHz / 2° 450 KHz |
| Sensitivity | -120dBm for 12dB SINAD (FM) |
| -107dBm for 12dB SINAD (AM) | |
| Audio output | @10% THD 2.5W at 8 ohm |
| Audio distortion | <8% at 1 KHz |
| Image rejection | 65dB |
| Adjacent channel | 85dB |
| Signal ise ratio | 45dB |
| Current drain | 220mA (stand-by) |
| TRANSMITTER | |
| System | CPU controlled P.L.L. synthesizer |
| Maximum RF power | 4W-10W at 13.2Vdc |
| Modulation | 85% to 90% (AM) |
| 2KHz ±0.2 KHz (FM) | |
| ANT impedance | 50 ohm unbalanced |
| Current drain | 1500mA (at no modulation) |
