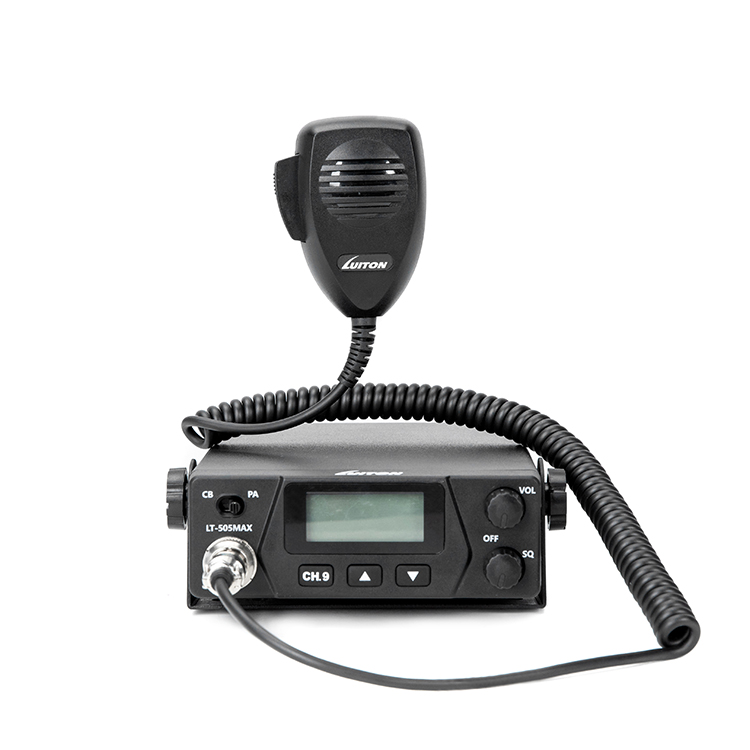

LUITON LT-505 MAX

    LUITON LT-505 MAX

    Categories:

    Function:

    • AM mode only. FM mode is customized
    • Frequency: 26.965~27.405MHz
    • 4Watts CB radio
    • Channels: 40 CB channels,
    • Emergency call channel available (CH9).
    • SQ function.
    • Power supply:12-24V Input
    • CB/PA Switch

    Product Description

    TECHNICAL CHARACTERISTICS

    GENERAL
    Modulation modesAM
    Frequency range26.965-27.405MHz
    Antenna impedance50 Ohms
    Power supply12-24V Input
    Dimensions12.88 x 6.03 x 2.31mm
    Weigh761G
    TRANSMISSION
    Frequency deviation+/-300HZ
    Power output4W
    Transmission interferenceInferior to 4nW(-54dBm)
    Audio response300HZ to 2KHZ in AM
    Emitted power in the adj.channelInferior to 20uW
    Microphone sensitivity3mV
    Maximum currentMax 1.5A
    Modulated signal distortionInferior to 5%
    RECEPTION
    Max sensitivity at 20dB sinad1.5uV-103dBm AM
    Frequency response300HZ to 2KHZ in AM
    Adjacent channel selectivity60dB
    Maximum audio power2W
    Squelch sensitivityMinimum 0.2uv-120dBm
    Maximum 1mV-47dBm
    Maximum current0.3Anomoinal/1.2A maximum

    LUITON LT-505 MAX
