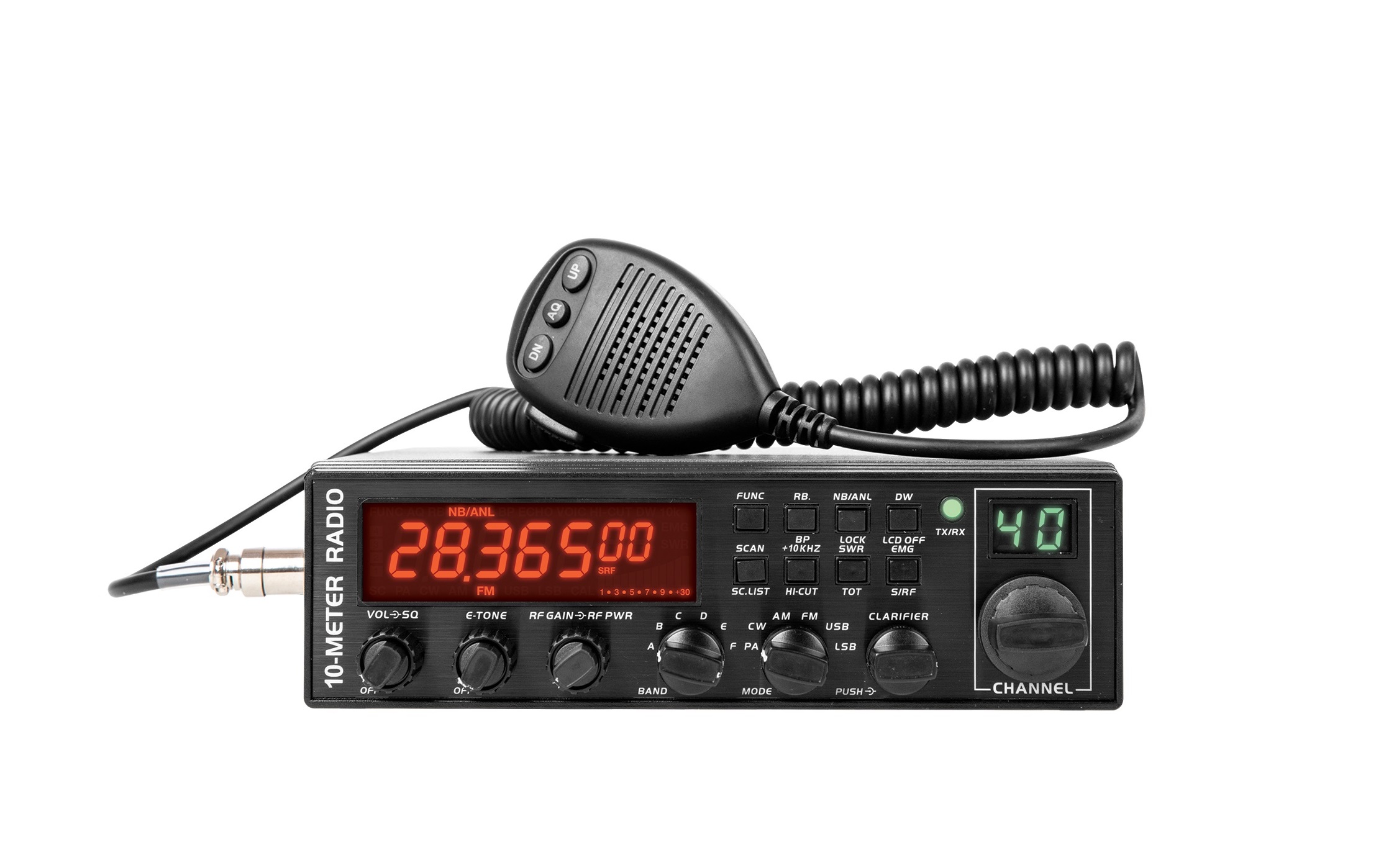

BARLY Ⅱ CB radio

      BARLY Ⅱ CB radio

      Categories:

      Function:

      • 40 channels AM/FM, 12/24 V
      • Manual squelch and ASC
      • Multi-functions LCD display
      • S-meter
      • Public Address
      • Talkback
      • ANL filter, NB
      • Compander
      • F function key
      • Beep Function
      • Roger Beep
      • VOX
      • Noise Gate
      • Preset channel programmable
      • TOT (Time out timer)
      • External loudspeaker jack

      Product Description

      TECHNICAL CHARACTERISTICS

      General
      Modulation modesAM/FM
      Frequency range26.965 MHz-27.405 MHZ
      Antenna impedance50 Ohms
      Power supply13.2V
      Dimensions55 x 130 x 170 mm
      Weight0.9kg
      Transmission
      Frequency accuracy+/-200 Hz
      Transmission power1W/4W
      Transmission interferenceInferior to 4nW(-54dBm)
      Audio response300HZ to 3KHZ in AM/FM
      Emitted power in the adj. channelinferior to 20 μw
      Microphone sensitivity7 mV
      Maximum currentmax 3A
      Modulated single distortion2%
      Reception
      Max sensitivity at 20dB sinad0.5 uV – 113 dBm AM
      0.35 μV- 116 FM
      Frequency response300HZ to 3KHZ in AM/FM
      Adjacent channel selectivity60dB
      Squelch sensitivityminimum 0.2 uv -120 dBm
      maximum 1 mV – 47 dBm
      Frequency image rejection rate60 dB
      Intermediate frequency rej. Rate70 dB
      Maximum current0.3A nominal/1.2A maximum
