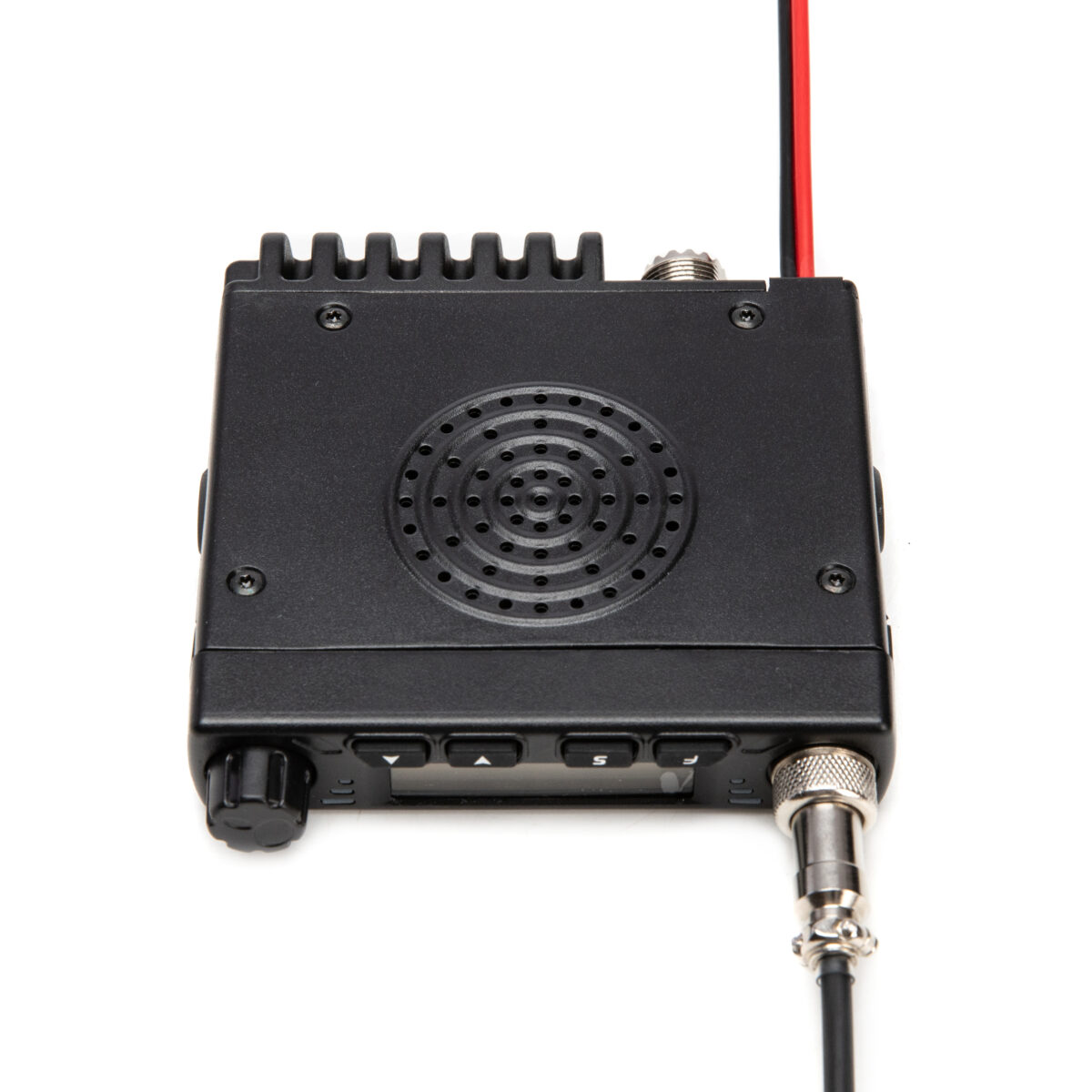

LT-1958 Mobile Radio

    LT-1958 Mobile Radio

    Categories:

    Function:

    • Frequency: 477MHz, 80 channels
    • Working Mode: Amateur Transceiver or Professional Transceiver
    • 80 programmable memorized channels
    • Output Power : 1W/5W
    • CTCSS/DCS decode and encode.(51 groups CTCSS Tone Frequency(Hz) / 1024
    • groups DCS Code)
    • Keypad lockout
    • Busy Channel Lockout
    • TOT(Time Out Timer)
    • Different band width per channel, 25K for wide band, 12.5K for narrow band.
    • Frequency Step 2.5K, 5K, 6.25K, 10K, 12.5K, 20K, 25K, 30K, 50K

    Product Description

    TECHNICAL CHARACTERISTICS

    GENERAL
    Frequency Range477MHz
    Number of Channels80 channels
    Channel Spacing25K (Wide Band)
    12.5K (Narrow band)
    Phase-locked Step2.5K,5K,6.25K,10K,12.5K,20K,25K,30K,50K
    Operating Voltage13.8V DC ±15%
    SquelchCarrier/CTCSS/DCS
    Frequency Stability±2.5ppm
    Dimensions109 (W) x 104(D) x 25 (H)mm
    Weightabout 0.5Kg
    Operating Temperature Range-20℃ to +60℃
    **Specifications are subject to change without notice due to advancements
    Receiver (ETSI EN 300 086 standard testing )
    　Wide bandNarrow band
    Sensitivity (12dB Sinad)≤0.25μV≤0.35μV
    Adjacent Channel Selectivity≥60dB≥60dB
    Intermodulation≥60dB≥60dB
    Spurious Rejection≥60dB≥60dB
    Audio Response+1~-3dB(0.3~3KHz)+1~-3dB(0.3~2.55KHz)
    Hum & Noise≥40dB≥40dB
    Audio distortion≤5%
    Audio power output>2W@16R
    Transmitter
    　Wide bandNarrow band
    Power Output15W / 10W / 5W
    Modulation16KΦF3E11KΦF3E
    Adjacent Channel Power≥70dB≥60dB
    Hum & Noise≥40dB≥36dB
    Spurious Emission≥60dB≥60dB
    Audio Response+1~-3dB(0.3~3KHz)+1~-3dB(0.3~2.55KHz)
    Audio Distortion≤5%

    LT-1958 Mobile Radio
