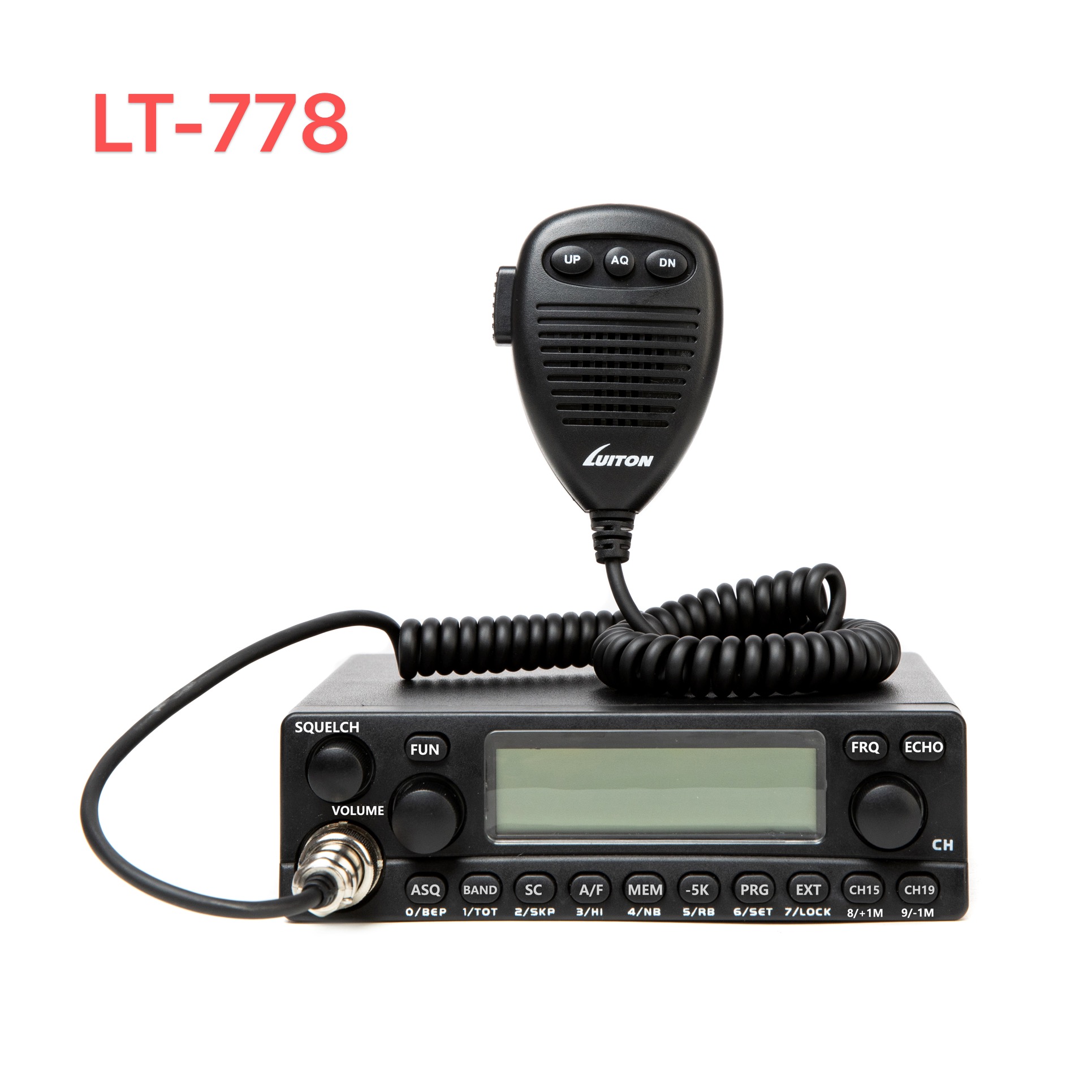

LT-778 CB radio

      LT-778 CB radio

      Categories:

      Function:

      •  AM PEP Max:60W FM Max:45W.
      • • ASQ function.
      • • Scan function.
      • • Emergency call.
      • • CTCSS/DCS code.
      • • Beep function.
      • • Key lock function.
      • • TOT function.
      • • Memory channel.
      • • NB/ANL.
      • • Roger beep and Echo.
      • • Key programming.
      • • PC programming.
      • • VFO mode (Input frequency).
      • • Busy channel lockout.

      Product Description

      TECHNICAL CHARACTERISTICS

      General
      Modulation modesAM/FM
      Frequency range28.000-29.700MHz
      25.615-30.105MHz(programmable)
      Antenna impedance50 Ohms
      Power supply13.2V
      Dimensions15.8x 4.8X16.5(WXHXL)
      Weight1.1kg
      Transmission
      Frequency accuracy+/- 300HZ
      Transmission powerAM: (PEP12W),15W(PEP60W)
      FM: 4W.15W. 50W
      Transmission interferenceinferior to 4nW(-54dBm)
      Audio response300HZ to 3KHZ in AM/FM
      Emitted power in the adj. channelinferior to 20 μw
      Microphone sensitivity3mV
      Maximum currentmax 11A
      Modulated single distortioninferior to 5%
      Reception
      Max sensitivity at 20dB sinad0.8uV -113 dBm FM 1.5uV -103 dBm AM
      Frequency response300HZ to 3KHZ in AM/FM
      Adjacent channel selectivity60dB
      Squelch sensitivityminimum 0.2 uv -120 dBm
      maximum 1 mV – 47 dBm
      Maximum audio power3W
      Maximum current0.3A nominal/1.2A maximum
